Performance Specification Guide

Specifying ToF Touchless Faucets for Airports, Healthcare, Hospitality and Smart Buildings

The correct question is not simply, “Is ToF better?” It is: “Will this complete faucet, in this basin, under this traffic and service model, meet measurable project outcomes?” This visual guide converts that question into a facility-specific specification, mockup and commissioning process.

A Time-of-Flight sensor supplies measured distance information to the faucet controller. A commercial faucet must also manage valve response, water delivery, power, timeout, cleanability, accessibility and maintenance. The Fontana ToF technology hub explains the sensing architecture, while the ToF faucet collection provides a starting point for model-level evaluation.

A defensible specification describes outcomes: first-attempt activation inside the intended hand zone; rejection outside that zone; complete shutoff after hands depart; rated flow at stated pressure; appropriate power and service intervals; accessible operation; and applicable certifications for the exact submitted model.

Start with the complete fixture—not a sensor label

40–180 mmTypical adjustable sensing range

100–350 msTypical system response target

0.35–0.50 GPMWater-efficient lavatory range

10–100 psiTypical operating pressure range

These figures are useful schedule benchmarks, but the submitted model’s documentation controls. Sensing range, response, flow, pressure, mixing, power and environmental ratings should be reviewed as one system. For Fontana configurations, coordinate AC/DC dual power, 6V battery backup or battery architecture, 12V DC transformer requirements and any project-specific connectivity before approval.

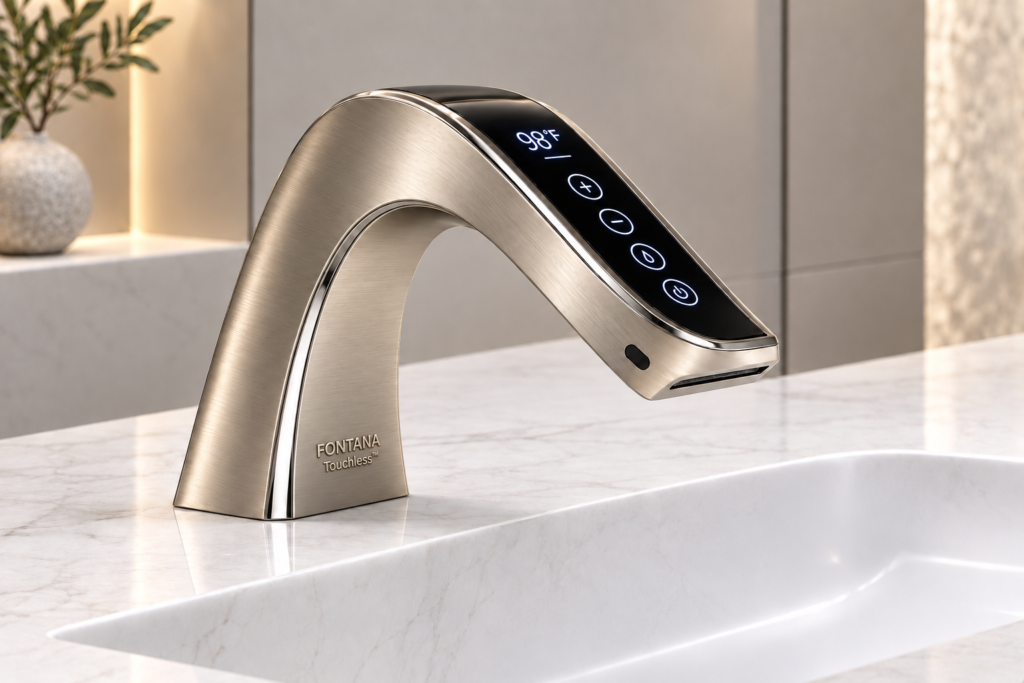

Architectural brushed nickel smart digital touchless faucet showing integrated display and commercial form — Evaluate the complete assembly: sensing, display or controller, outlet geometry, valve response, power and service access.

Architectural diagram showing touchless faucet sensing power valve and water-delivery operation — Review the sensor, controller, power, valve and water path as one operating architecture—not as isolated components.

Illustration: the specification sequence

Define users and peak traffic

Coordinate basin geometry

Set measurable criteria

Mock up and record

Commission and maintain

A submittal review without a representative mockup leaves the most important interface—the relationship among hand, sensor, spout, stream and basin—untested.

Four facilities, four sets of priorities

Airports

Peak arrival banks, rolling luggage, changing daylight, diverse users and long fixture rows emphasize false-activation rejection, adjacent-unit isolation, rapid parts access and resilient power.

Healthcare

Cleanability, dependable hands-free workflow, water-management policy and service discipline outweigh novelty. Coordinate the sensor, outlet, basin and infection-control requirements.

Hospitality

Decorative basins and reflective finishes increase the value of full-size mockups. Quiet operation, intuitive detection and finish durability shape guest perception.

Smart buildings

Open protocols, useful alerts, data ownership and integration responsibility matter. Connected data should trigger an operational action—not merely populate a dashboard.

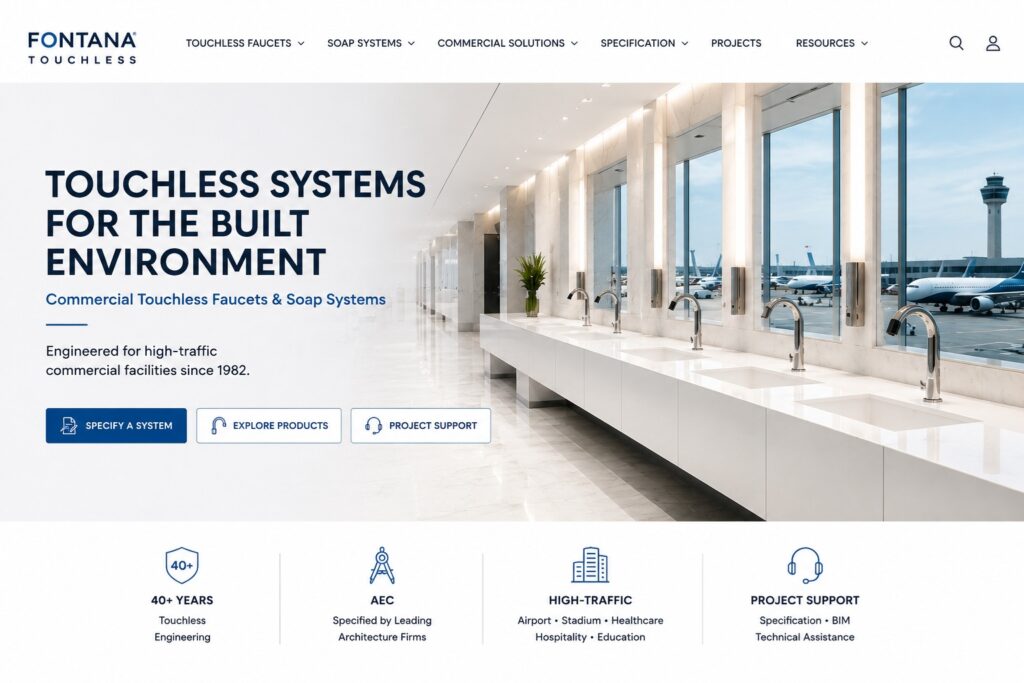

Fontana commercial touchless faucets specified for a high-traffic airport restroom — Airport fixture banks require peak-load testing, adjacent-station isolation, resilient power and fast service access.

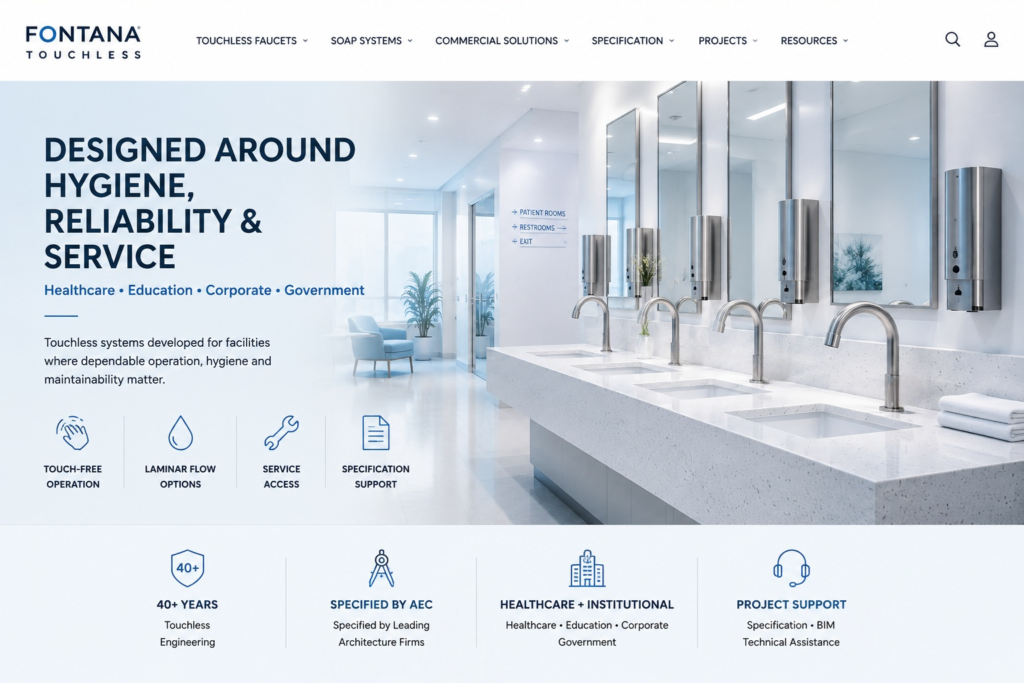

Fontana touchless faucets for healthcare and institutional handwashing applications — Healthcare review should coordinate cleanability, outlet type, water-management policy and maintenance practice.

Facility decision matrix

Criterion	Airport	Healthcare	Hospitality	Smart office
Peak-cycle resilience	High	High	Medium	Medium
Optical complexity	Daylight, mirrors, long banks	Cleaning residue, varied users	Decorative bowls, polished surfaces	Changing fit-out and lighting
Power priority	Redundancy and fast service	Documented maintenance	Concealed, quiet service	Monitored condition
Data value	Traffic and fault triage	Availability and work orders	Guest-area uptime	Portfolio optimization
Most important proof	Peak-load mockup	Approved facility protocol	Exact finish and basin mockup	Integration acceptance test

Estimated annual touchless faucet activation cycles compared by commercial facility type — Traffic assumptions should be documented because activation volume affects power planning, valve cycling, inspection frequency and spare-parts strategy.

Optical and basin coordination

Distance sensing improves the information available to the controller, but it does not remove optical constraints. Field of view determines what the sensor sees; target reflectivity influences the return signal; a cover window can introduce crosstalk; and water spots or cleaners can change transmission. Useful engineering references include STMicroelectronics’ guidance on field of view, cover-window integration and reflectance measurement.

Draw the detection envelope on the section detail. It should capture hands beneath the stream without interpreting the drain, backsplash, user’s torso or movement at the neighboring station as a valid target. With vessel or sculptural basins, test the exact production sample rather than a generic white sink.

Touchless faucet detection-zone setup showing proper hand sensing area above the basin — The accepted detection zone should cover the intended handwashing area without seeing the drain, backsplash or neighboring user as a valid target.

Performance requirements to place in the schedule

Requirement	Specify	Verify	Avoid
Sensor	Method, intended zone, adjustment and timeout	Hands of varied size and approach	“Advanced sensor” without a method
Hydraulics	Rated flow, pressure range, outlet and mixing arrangement	Measured flow and comfortable hand position	Assuming sensor speed equals water response
Power	AC/DC architecture, batteries, cable and failure state	Access and replacement procedure	Battery-life claims without duty-cycle assumptions
Environment	Temperature, humidity, ingress and cleaning limitations	Exact model documentation	Generalizing component ratings to the faucet
Compliance	Exact certifications required by jurisdiction	Listing or certificate for submitted model	Assuming ToF establishes compliance
Service	Replaceable sensor, solenoid, controller, filters and parts term	Timed maintenance demonstration	Inaccessible boxes above finished ceilings

Integrated three-in-one commercial touchless faucet soap dispenser and hand dryer system — For integrated wash systems, coordinate the activation zones, electrical loads, air path, drainage and maintenance sequence as one assembly.

Commercial automatic soap dispenser failure matrix for power sensor nozzle and priming review — When a coordinated dispenser is included, define soap viscosity, dose, refill method and a repeatable diagnostic sequence for power, sensing, nozzle condition and priming.

Risk heatmap for submittal review

Risk	Unverified	Documented only	Mockup verified
False-on or missed-on	High	Medium	Lower
Basin incompatibility	High	Medium	Lower
Service access	High	Medium	Lower
Certification gap	High	Lower	Lower
Integration failure	High	Medium	Lower

“Lower” does not mean eliminated. This heatmap is a qualitative project-control tool—not a measured failure probability.

Finish selection is also a lifecycle decision

Finish approval should account for the project’s lighting, basin material, cleaning chemistry, contact patterns and replacement strategy. PVD, brushed, polished, matte and hand-rubbed finishes should be assessed on actual production samples. In public spaces, verify that replacement components remain available in the selected finish and that the approved cleaning protocol will not damage the surface.

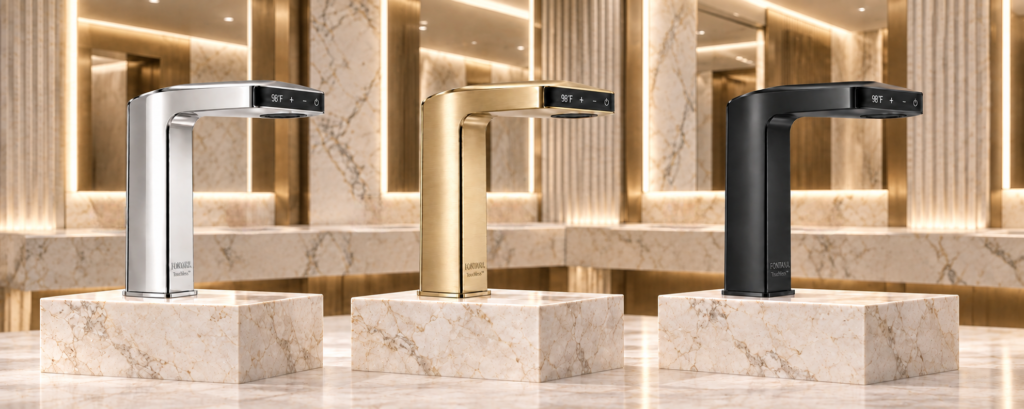

Fontana smart digital touchless faucets shown across principal architectural finishes — A consolidated finish palette supports early design coordination without repeating near-identical product images.

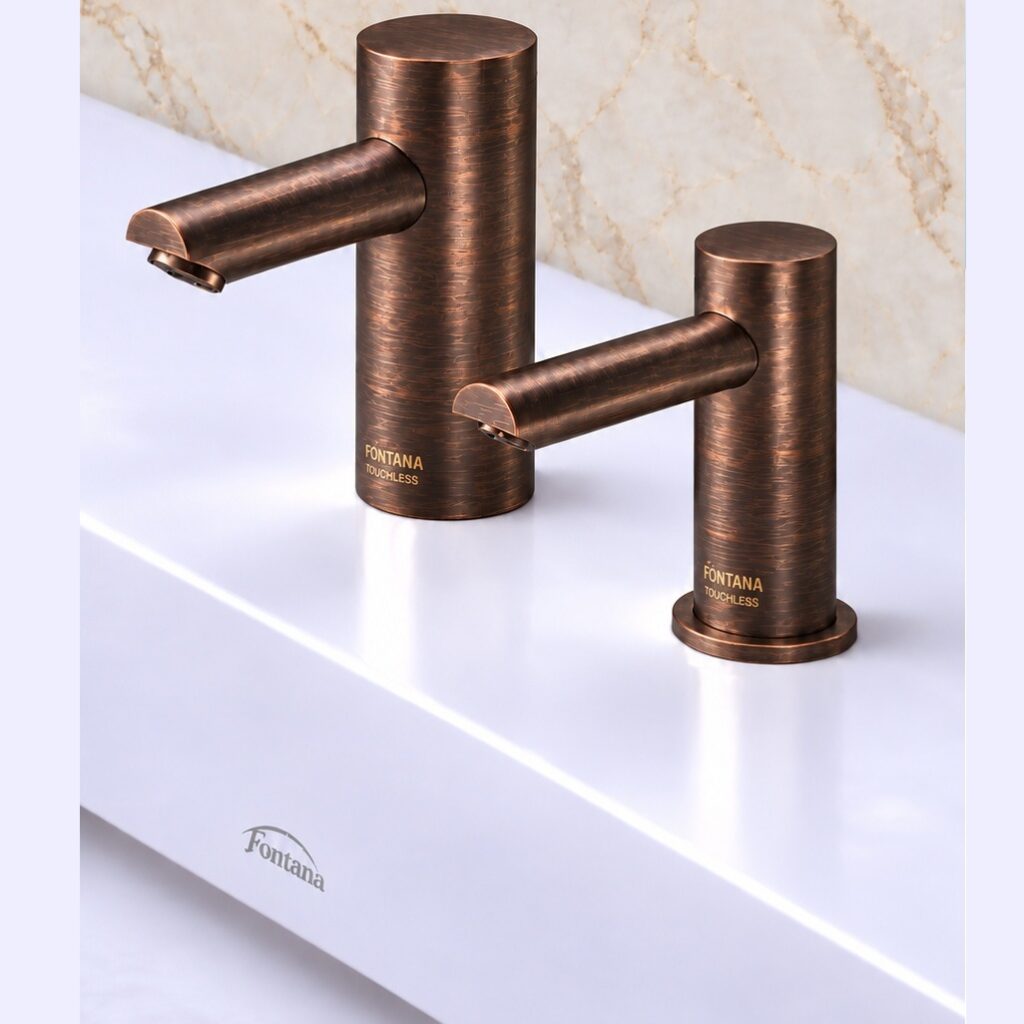

Fontana deck-mount touchless commercial bathroom set in a hand-rubbed antique brass finish — Specialty patinas require an actual finish sample, an approved cleaning protocol and confirmation of future replacement-part availability.

Compliance checkpoints

ToF is a sensing method—not a plumbing or accessibility certification. Use the U.S. Access Board’s lavatory guidance to coordinate clearances and operable parts. Review ASME A112.18.1/CSA B125.1 for plumbing supply fittings and verify potable-water listings through NSF’s official database.

EPA’s WaterSense lavatory-faucet specification defines its scope, which should not be casually extended to every public-use commercial faucet. LEED and WELL outcomes likewise depend on project calculations, operating policies and the selected fixtures—not merely the presence of a ToF sensor.

Commissioning worksheet

Record model, firmware or controller version, power source, flow control and supply pressure.
Photograph the basin, backsplash, mirror and sensor orientation.
Run at least 30 realistic hand presentations per representative station type.
Record first-attempt activations, missed events, false events and complete water-on delay.
Measure shutoff after hand removal and confirm maximum runtime.
Repeat under daylight and electric-light extremes where applicable.
Wet and spot the basin and sensor window; repeat within approved cleaning conditions.
Operate adjacent fixtures simultaneously and watch for cross-activation.
Demonstrate access to the filter, solenoid, controller, power and batteries.
Save baseline settings, photographs, results and corrective-action ownership.

Fontana commercial touchless fixture specification and commissioning overview — Retain the approved model, settings, flow control, power configuration, test results, photographs and corrective actions as part of the commissioning record.

Smart-building integration: connect data to action

Connected operation is useful only when a signal maps to a decision. Define which party owns device identity, network security, data retention, alarm thresholds and work-order closure. Useful measures may include activations, unusual continuous-run events, low-power status, unavailable fixture-hours and mean time to repair. The Fontana Smart Series and smart-faucet overview show how the conversation expands from an individual sensor to an operating system.

BIM coordination resources for commercial touchless faucet specification and smart-building integration — BIM content should support coordination of fixture geometry, clearances, power, controls, plumbing connections and service access—not function as a decorative model alone.

Specify with evidence

Require model-specific technical documentation, coordinate the exact basin and finish, construct a representative mockup, record measurable acceptance results and retain baseline settings for facilities staff.

View ToF Ask Expert

Sources and further reading

Images supplied by FontanaShowers / Fontana Touchless Faucets. Confirm all model-specific performance values and certifications at submittal.
